MiniTest 7400FH

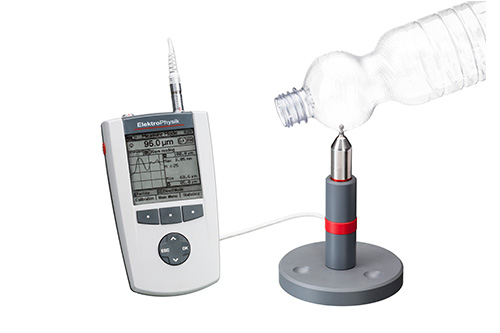

High-end Wall Thickness Gauges measuring device MiniTest 7400FH

Professional, high-end Wall Thickness Gauges measuring device for non-destructive measurements of up to 24 mm. The devices are suited for thickness measurement of non-magnetic materials such as glass, synthetic materials, stainless steel and composites and even complex component geometries can be measured.

The SIDSP sensor ensures high measuring precision and repeatability and compensates for temperature influences of the measuring environment and the measurement object. The sensors are equipped with carbide metal tips making them highly wear-resistant.

Thickness is determined by measuring the distance of a reference ball to the sensor tip. A powerful magnet attracts the reference ball which holds it exactly over the sensor tip.

The reference steel balls are subjected to a special Elektro Physik treatment process for a repeatability of up to 0.5 percent.

It is operated via a graphical interface with operating assistance as in a PC: context-specific help, filing readings in folder structures and menu navigation with symbol and text display; operator guidance is available in 4 languages others are under preparation.

Application

Non-destructive Wall Thickness Gauges measurement of:

  • Non-magnetic materials like synthetic materials, glass, ceramic, non-ferrous metals...
  • All kinds of hollow items like bottles, aluminium cans, glass and plastic containers with complex geometries...
  • Thermo-moulded parts like cups, cans, bowls...
  • Die-cast and moulded plastic parts, fibre compound materials, non-ferrous metals etc., for e.g. in the automotive field (gear casing, body and interior components), in avionics (turbine components, combustion chambers, high-pressure pipes), in the medical field...

Features

  • Precision in Wall Thickness Gauges measurement of up to 24 mm
  • Greater accuracy and repeatability by the sensor-integrated digital signal processing (SIDSP®)
  • High resolution upwards of 0.1 µm
  • 20 readings per second
  • Wear-resistant sensors with hardened sensor tips
  • Recording and statistical evaluation of up to 240,000 readings
  • Display of minimum and maximum values
  • Menu-driven operator interface
  • Context-oriented online help
  • RS 232 TTL and IrDa 1.0 interfaces

Scope of Delivery - Device

  • device MiniTest 7200FH or 7400FH
  • Data transfer software MSoft 7 Professional Edition
  • Operating instructions in German / English / French / Spanish / Portuguese and Italian on CD Rom
  • Short operating instructions
  • 4 AA batteries, type LR06
  • Plastic carrying case
  • Protective rubber casing with positioning device and carry strap
  • 1 magnetic screwdriver

Scope of Delivery - FH 4 Sensor

  • sensor FH 4
  • 3 precision standards (approx. 0.25 mm, 1 mm and 3 mm)
  • Spring-loaded measuring stand for the FH 4 sensor
  • 1 packet of 100 1.5 mm balls
  • 1 packet of 100 2.5 mm balls
  • 1 packet of 50 4 mm balls
  • Zero calibration standard for the 1.5 mm, 2.5 mm and 4 mm balls respectively

Scope of Delivery - FH 10 Sensor

  • sensor FH 10
  • 3 precision standards (approx. 1 mm, 3 mm and 8 mm)
  • Spring-loaded measuring stand for the FH 10 sensor
  • 1 packet of 100 2.5 mm balls
  • 1 packet of 100 4 mm balls
  • 1 packet of 50 6 mm balls
  • Zero calibration standard for the 2.5 mm, 4 mm and 6 mm balls respectively
